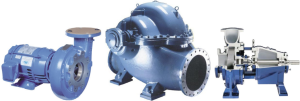

Peerless Pump manufactures a large line of horizontal pumps in single and multi-stage configurations, in a variety of materials and engineering options to meet your pumping needs.
+ Horizontal AE
Horizontal split case, single-stage pumps in discharge sizes from 2″ to 24″.
Using the latest technology, Peerless Pump engineered the AE series pump to accommodate a variety of applications. The single-stage, double suction, horizontal split case pump comes in 42 different hydraulic configurations and 25 pump sizes. Discharge sizes range from two to ten inches. The AE has a wide selection of hydraulic performance envelopes, multiple mechanical configurations and several material options.
+ Horizontal TU & TUT
Horizontal split case, multi-stage pumps with two to five stages.
The Peerless TU or TUT pump is a cast iron, bronze-fitted, multi-stage, horizontal split case design. Type TU pumps are a two-stage design, while TUT pumps are three, four and five stage.
– Application:
- Boosting
- Water treatment
Specs:
CapacitiesUp to 6,000 gpm (1,636 m3/hr)
HeadUp to 1,600 feet (488m )
PressureUp to 700 psi (48.26 bar)
HorsepowerUp to 1,300 hp (969 kW)
TemperatureUp to 300°F (149°C)
DrivesMotors, engines, steam turbines, combinations
LiquidsWater and clear liquids
MaterialsCast iron, bronze fitted as standard. Other materials are available.
+ F, C End suction, general-purpose pumps.
Peerless F Series pumps are general-purpose, frame mounted, end suction pumps flexibly coupled to drivers and equipped with coupling guards. Each entire unit can be mounted on a steel base. An optional drip pan is available.
Peerless C Pump Series pumps are close coupled with standard C-face JM or JP solid shaft ball bearing motors specifically designed for pump applications in accordance with standards developed by the Hydraulic Institute (HI) and the National Electrical Manufacturers Association (NEMA).
